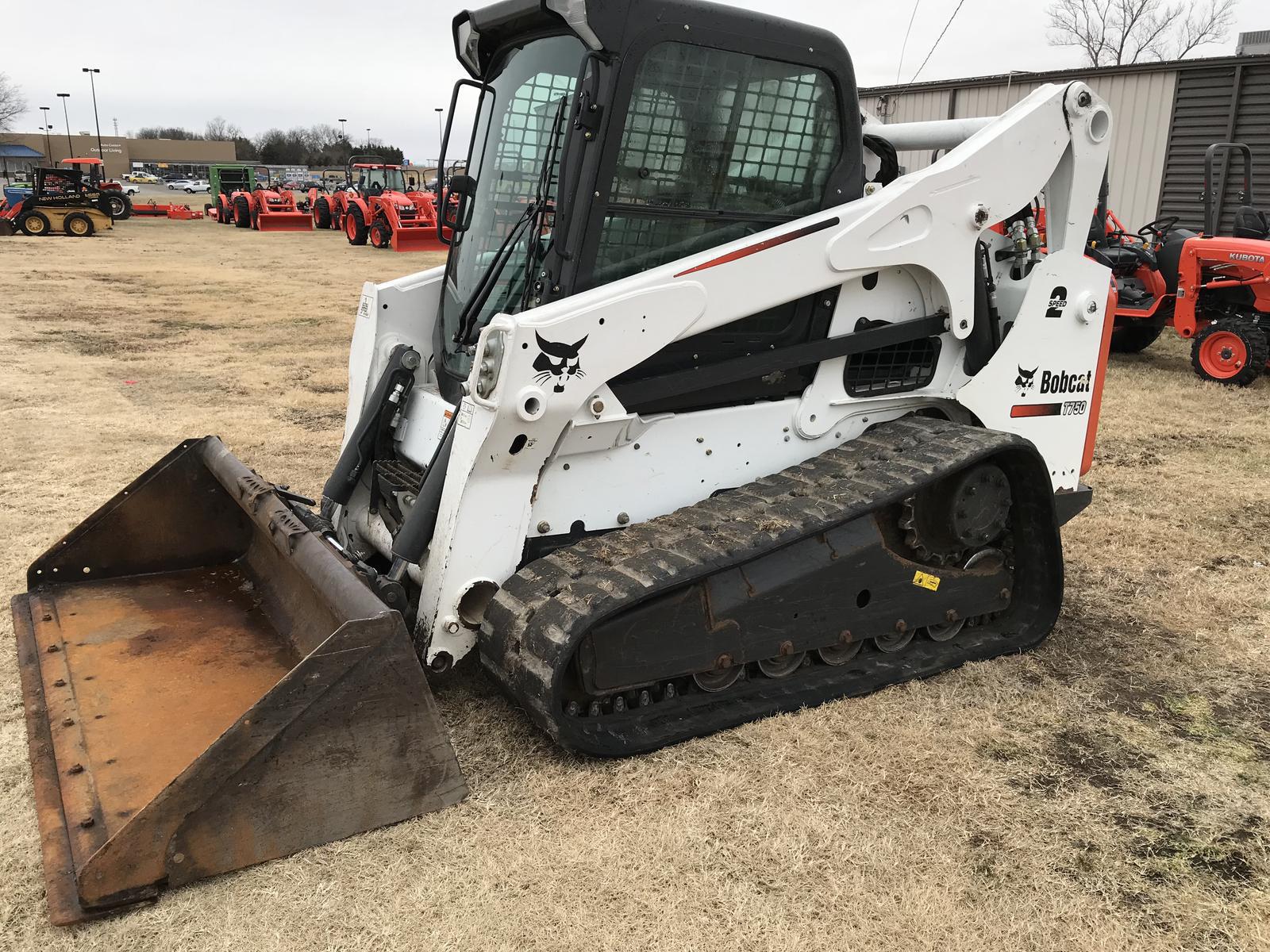

T750
|
Dimensions
|
||
| A. Length w/ Bucket | 11.8 ft in | 3596.6 mm |
| B. Width Over Tracks | 6.5 ft in | 1981.2 mm |
| C. Height to Top of Cab | 6.8 ft in | 2065 mm |
| F. Length w/o Bucket | 9.5 ft in | 2903.2 mm |
Specification
| Engine | ||
| Make | Kalmar | |
| Operational | ||
| Operating Weight – 4wd | 10515 lb | 4769.5 kg |
| Fuel Capacity | 44.4 gal | 168.1 L |
| Max Speed – high range | 6.6 mph | 10.6 km/h |
| Undercarriage | ||
| Ground Pressure | 4.2 psi | 29 kPa |
| Loader | ||
| Tipping Load | 9500 lb | 4309.1 kg |
| Hydraulic | ||
| Relief Valve Pressure | 3500 psi | 24131.6 kPa |
| Dimensions | ||
| Width Over Tracks | 6.5 ft in | 1981.2 mm |
| Length w/ Bucket | 11.8 ft in | 3596.6 mm |
| Length w/o Bucket | 9.5 ft in | 2903.2 mm |
| Height to Top of Cab | 6.8 ft in | 2065 mm |
| Turning Radius from Center – machine rear | 88 in | 2235.2 mm |
